Electric forklift CPD-10
关键词:
Classification:
Keyword： Electric forklift CPD-10
E-mail:
Product Detail
Configuration parameter
It is suitable for various warehousing and logistics scenarios, and has the characteristics of strong carrying capacity, good stability and flexible operation.
| Basic parameter | |
| Manufactured model | Type CPD-10 |
| Rated lifting weight | 1000kg |
| Fork lifting height | 3000mm |
| Total vehicle weight | 1700kg |
| Body size (without fork) | 1800*1100*2100mm |
| Battery specification | |
| Battery type | Lead-acid battery (optional) |
| Storage capacity | Model 120 *5 pieces |
| Motors and controllers | |
| Motor control form | Filtered alternating flow |
| Drive motor power | 3 kw |
| Boost motor power | 2.5 kw |
| Tire parameter | |

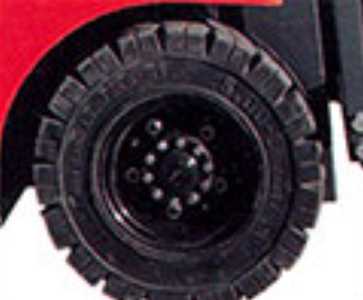

| Tyre type | Elastic solid tire |
| Tire Specifications (front/rear) | 500-8/400-8 |
| Other parameters | |
| Steering form | Mechanical steering |
| Fork type | Forging fork |
| Fork size (thickness * width * length) | 35*100*1070mm |
Bright spot parameter
★ CPD is a high-performance, energy-efficient electric counterweight forklift series developed with a new architecture.
★ At the same time of innovative research and development of control and power systems, the product appearance and ergonomic reliability have been optimized, and the vehicle performance has been greatly improved.
★ Spacious operating space, safe and comfortable seats and small diameter steering wheel ensure good driving comfort.
★ Rich safety configuration such as: anti-collision protection frame, LED headlights, fire extinguishers, emergency stop switch and other safety configuration to ensure the safety of drivers.
★ The compact and compact body design coupled with a smooth cargo sensing steering system can operate in narrow storage laneways.
★ Parking electromagnetic brake can realize the function of peaceful automatic parking on the ramp, anti-sliding slope of forklift and starting of the ramp.
★ With speed sensor, temperature sensor. Turning has a deceleration function to prevent turning speed too fast, resulting in rollover accidents.
Optional configuration
★ Fork lifting height and fork size can be customized.
★ Can be equipped with different specifications of batteries, lithium batteries.
★ Can be installed in the cylinder, cargo fork side shift function.
★ Custom color: Energy red, water dark green, sky blue, lemon yellow.
 |
 |
 |
 |
 |
 |
| Multiple chain | Wheel steering wheel | Elastic solid tire | Multi-function instrument | Large capacity battery | LED lighting headlights |
